Key Steps For Your Dust Monitoring Action Plan

Latent dust exposure has been known to have long term health implications for mine workers and occupants of surrounding adjacent areas. As key prevention steps, there’s a wide range of dust monitoring controls you can integrate into your operations. Apart from using a real time particulate monitor we recommend implementing the following action plans across your workplace:

  • Keep the number of workers in dust-range work areas to a minimum.
  • Respiratory protective equipment (RPE) made for an exact fit. Additionally, employers should reinforce other items of protective equipment to be worn correctly by workers. They should provide RPEs with a high assigned protection factor (APF) for their employees’ safety.

The above prevention and control techniques should be used in combination with each other to sufficiently provide an effective countermeasure.

dust monitor device

Partner With Nome Services For Dust Monitoring Solutions

Nome Services provides essential dust control, risk management, and increased workplace safety. Our technology is more than capable of meeting the needs of your project — no matter how large or small. Enquire now to find out how we can improve your worksite and process.

Enquire Now

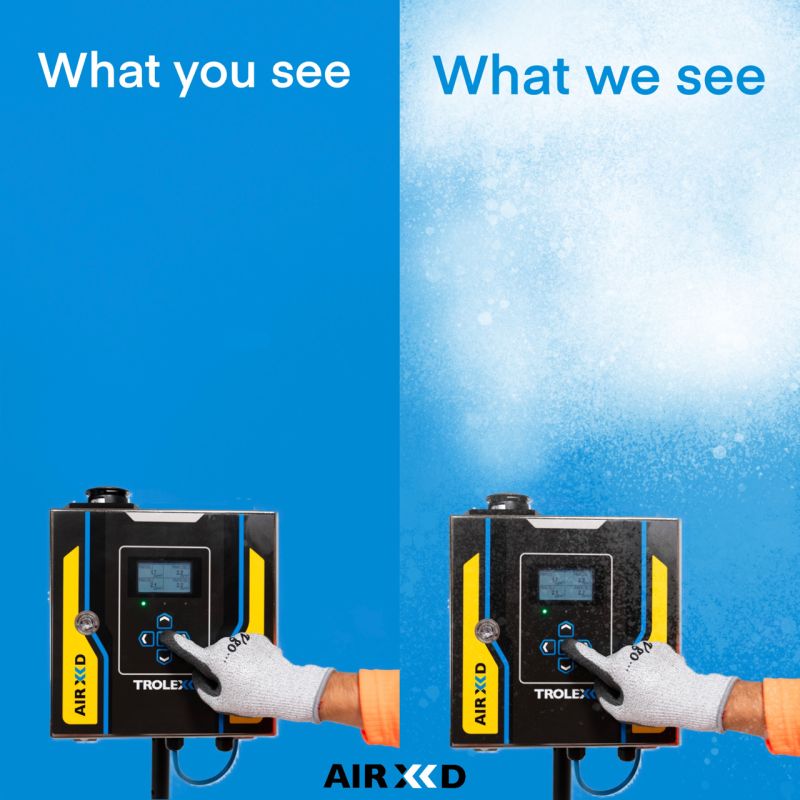

dust monitor what you see

Our Featured Product — Air XD Real Time Particulate Monitoring System

A real time dust monitor providing highly accurate particulate monitoring for harsh environments. The AIR XD offers unparalleled accuracy and flexibility with its real-time data. It provides the necessary information to protect people, processes and the environment.

Enquire Now
Dimensions

Flexible, configurable

Focus on one PM size or all of them. You choose.

Because the AIR XD collects data on all particulates between 0.35μm and 40μm, users can easily access detailed information about any PM size. The Air XD unit allows simultaneous display of any combination of PM sizes required. Use of our application software allows detailed analysis of all measured particulates, offering advanced 3D graphing across the full size range. Easily see how the composition of your dust changes over time to ensure your workforce has optimal protection.

Enquire Now

Measurement Range

0.1 µg/m3 Up to 1500 mg/m3

PM Size range

0.35 µm – 40 µm (including PM1.0, PM2.5, PM4.25, PM10, TSP)

PM Density Range

0.8 g/ml to 8 g/ml (default: 1.65 g/ml)

Averaging Period

1 s – 24 hrs

Maximum Particle Count

10,000 per second

Accuracy

+/- 5%

Flow Rate

Dynamic (1.2 l/m nominal)

Humidity

95% (non-condensing)

Operation Temperature

10 to 40 °C

Relay Outputs

Two configurable (alarm outputs)

4-20 mA Outputs

Two configurable (real-time readings)

Display

128 x 64 dot matrix display with backlight

Buttons

Five navigation (membrane keypad)

Communications

RS485 data output with MODBUS protocol Ethernet

Power

100 V to 240 V ac 50/60 Hz 9 V to 30 V dc

Weight

7.1 kg

Data Storage

>10 years

Data Download

USB

  • Constant pressure from 1 to 20 inches water
  • Bluetooth wireless connectivity with PC and DataTrac Pro Software
  • Large backlit display
  • Displays time, date, battery status, flow rate, sample volume, temperature, atmospheric pressure, programmed run remaining time, and elapsed run time
  • Easy touch screen operation and calibration
  • Constant flows from 20 to 500 ml/min
  • Accommodates typical flow rates for sorbent tubes
  • Constant pressure from 1 to 20 inches water
